Montblanc Nicolas Rieussec Rising Hours


Montblanc Nicolas Rieussec Rising Hours

Nicolas Rieussec Rising Hours

A chronograph for day and night
La Cote des Montres - January 24th, 2013

After observing the evolution of Montblanc’s Nicolas Rieussec chronographs, one might be tempted to conclude that time is a disc. Montblanc first used rotating discs to replace the hands on the chronograph’s counters for sixty elapsed seconds and thirty elapsed minutes. A rotating disc was afterwards installed to indicate the hour in a second time zone. And now the Montblanc manufacture debuts its Nicolas Rieussec Rising Hours, which relies on two discs, one atop the other, to show not only the twelve hours, but to also indicate whether each of the dozen is a daytime or night-time hour.

Although the time display on the Rising Hours chronograph is new and revolutionary, this timepiece is nevertheless a typical member of the Montblanc Nicolas Rieussec Collection, which first embodied an outstandingly successful idea in 2008, when the brand launched the first wristwatch chronograph with a genuinely new look in which the discs turn and its hands stand still. Now this principle has undergone further evolution to display the “ordinary” (i.e. non-elapsed) hours, which Montblanc’s engineers have augmented with an appealing complication: they’ve built a day/night indication into the hour display.


A difference like day and night


A digital hour display wouldn’t have been anything new per se. The hour numerals simply come and go beneath a stationary index, while the minute-hand turns its circles in the conventional manner. But the way the hours are shown on the Montblanc Nicolas Rieussec Rising Hours is technically revolutionary. Like all models of this collection, this watch too has a slightly off-centre dial for the ordinary time of day. But instead of an hour-hand, there is a circular aperture at the “12” in which a disc bearing Arabic numerals for the twelve hours turns below a little triangular index. Aficionados will no doubt have seen similar digital hour displays on other timepieces in the past, but the Nicolas Rieussec Rising Hours goes one decisive step further: its hour numerals change colour depending on the time of day or night. The numerals are pale blue during night time hours and black during the day. At a glance, this interesting function assigns each hour to the day or night and makes it easier to properly set the date display so that the date changes correctly at midnight rather than mistakenly at midday.

A New Montblanc manufacture calibre

with a patented day/night mechanism

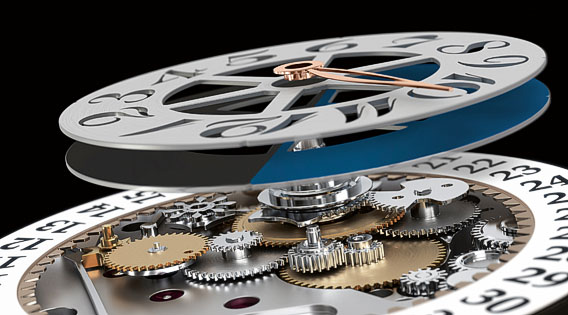

This unusual time display is made possible by the new manufacture calibre MB R220, which boasts an elaborate patented mechanism consisting of two rotating discs positioned one atop the other. The Arabic numerals 1 to 12 are cut from the upper disc. This twelve-hour disc turns above the bicolour day/night disc, which is half pastel blue and half black so that a light or dark hue appears in the skeletonised numeral in the window depending on the time of day or night. The twelve-hour disc rotates continually, while the day/night disc turns in intervals and at variable speeds to produce the desired colour change (pale blue for the night, black for the day) in the cut-out numerals. This complex motion is controlled with the aid of a Maltese cross mechanism consisting of two cam-like wheels. One of these cams is mounted on the propelling staff of the day/night disc; the other is affixed to an extension of the hour-staff.

Each cam’s profile is specially shaped so that the cams turn idly past one another between 9 a.m. and 3 p.m. (and again between 9 p.m. and 3 a.m.); the day/night disc is accordingly motionless throughout both these intervals. Meshing begins at 3 a.m. (and 3 p.m.). This engagement causes the day/night disc to turn at an increasingly faster pace until two teeth on either side engage in a way that the day/night disc no longer accelerates but instead continues to turn synchronously with the twelve-hour disc – this occurs from 4:30 a.m. to 7:30 a.m. (and from 4:30 p.m. to 7:30 p.m.). Afterwards, the day/night disc decelerates between 7:30 a.m. and 9 a.m. (and between 7:30 p.m. and 9 p.m.) until the meshing is completely separated, whereupon the day/night disc comes to a standstill.

This patented “Rising Hours” mechanism is particularly self-explanatory twice a day: at six o’clock each morning, the pierced digit “6” appears light blue on the left and black on the right to symbolize that night is ending and day is dawning; at six o’clock each evening, black daylight at the left yields to pastel blue night-time hours at the right.

In addition to this double-disc mechanism, four other disc displays rotate in the Montblanc Nicolas Rieussec Rising Hours. The day of the week is shown in a window at the “9” and the date appears in an aperture at the “3”. Naturally, the chronograph’s function likewise relies on the same unmistakable concept, with one disc to count sixty elapsed seconds and another to tally up to thirty elapsed minutes. The technical basis of the calibre with integrated chronograph is largely identical with the movements in the other Nicolas Rieussec models. This latest chronograph likewise has only one button, which is unconventionally but ergonomically positioned at “8 o’clock”, where the wearer’s thumb can conveniently operate it. In accord with tradition, this chronograph is controlled by a column-wheel which couples and uncouples in a very modern and low-wear manner via a vertical friction coupling. Also noteworthy are the innovative profiles on the gear-train’s teeth, which optimize energy transfer while minimizing both wear and energy consumption. The rate is regulated by a massy 10-mm-diameter screw balance which oscillates very regularly thanks to its high moment of inertia (12 mgcm2) and its frequency of 28,000 A/h (4 Hz). The regularity of the rate is further enhanced by the double barrel, which amasses a 72-hour power reserve and maintains a very constant level of torque throughout a lengthy interval. A self-winding mechanism keeps the power reserve constantly high as long as the watch is worn.

Tradition and aesthetic

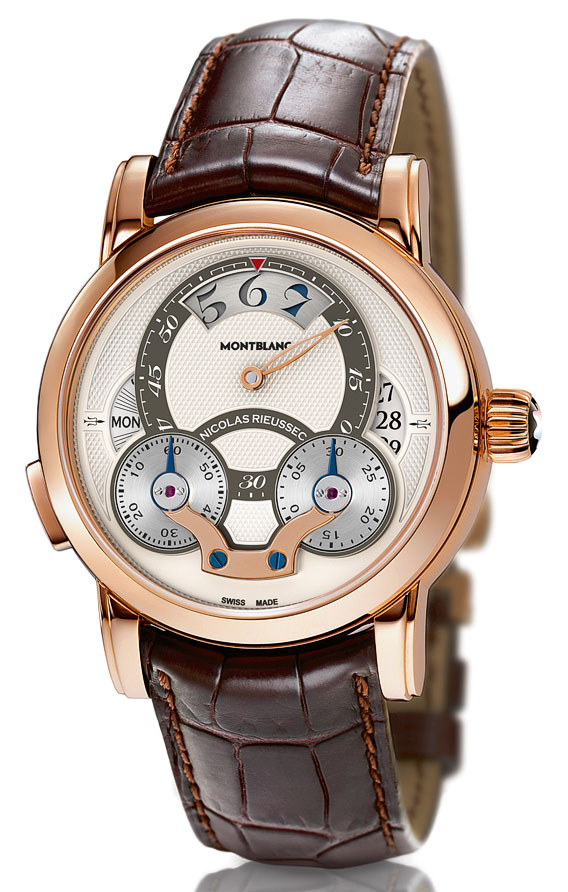

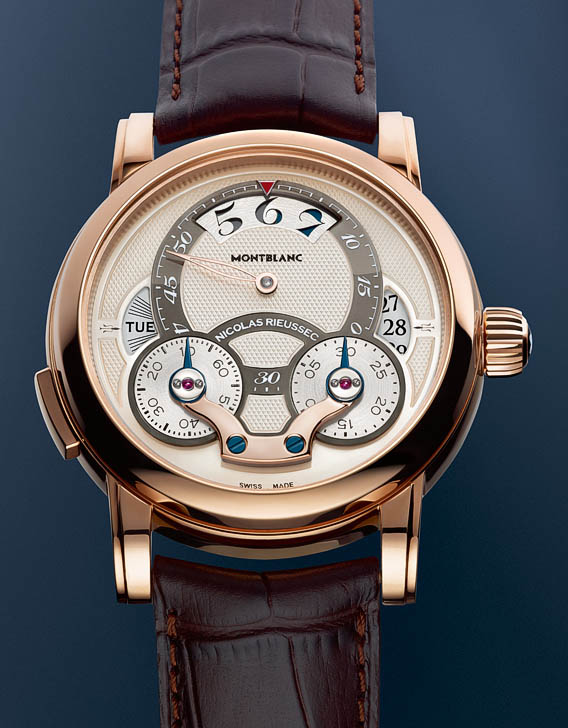

The exterior of the Rising Hours unmistakably announces that this is a Montblanc Nicolas Rieussec timepiece and instantly shows that it is indeed an unusual one. Characteristic features include rotating discs under motionless pointers for the elapsed minutes and seconds, as well as a two-armed bridge at “6 o’clock” with bright red ruby bearings which makes the dial look as though it was smiling. Above it is the off-centre dial to show the ordinary time of day or night via a skeletonised minute-hand and digital hour numerals. The day of the week appears in a semicircular aperture at its left, the date in a similar window at the right. The unoccupied spaces between and alongside these displays are embellished with grain d’orge (barleycorn) guilloche, which ranks among the most traditional decorative techniques in the art of watchmaking.

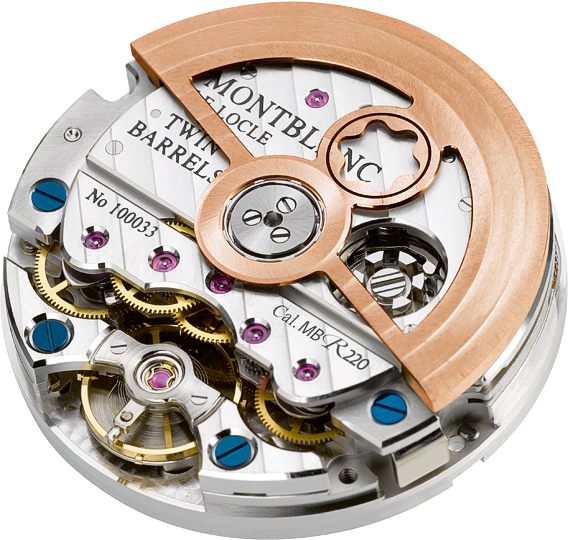

This timekeeping microcosm is ensconced inside a classically round, 43-mm-diameter case made of 18 ct red gold with finely terraced horns. A brown alligator-leather strap with large reptilian scales is affixed between the horns. A triply folding clasp made of red gold closes and opens the strap. The fluted crown, which is likewise made of 18 ct red gold, bears a mother-of-pearl inlay shaped like Montblanc’s emblem. The domed sapphire crystal above the dial is antireflective on both its surfaces. A second pane of sapphire is inserted into the screwed back to reveal the winding rotor, which is milled from solid red gold: the high specific gravity of this precious metal facilitates this component’s work.

The Montblanc Nicolas Rieussec Rising Hours chronograph is also available in 950 platinum and in stainless steel versions. The platinum variant is limited to 28 timepieces, each of which is affixed to a grey alligator-leather strap with a white gold folding clasp. The stainless steel version has a black alligator-leather strap with a folding clasp.

Homage to Nicolas Rieussec /h5>

(1781 – 1866)

With its launch of the Nicolas Rieussec chronographs, Montblanc enriched the world of watches with an entirely new design inspired by watches for measuring brief intervals that were first created by Nicolas Rieussec, an ingenious watchmaker and the inventor of the chronograph. Rieussec’s chronographe encreur (i.e. ink chronograph) passed its test in 1821 and received patent protection in 1822. This innovative “ink chronograph” measured elapsed seconds and minutes by means of rotating white enamel dials under motionless pointers culminating in ink-filled reservoirs below moveable nibs. When the user pressed a button, these nibs quickly passed through the reservoir and pecked at the dials to leave little ink markings. In this way, several short intervals could be measured one after the other. The elapsed times were literally written in ink on white enamel, so Rieussec’s coinage of the neologism “chronograph” was perfectly appropriate because in Ancient Greek, chronos means “time” and graphein means “to write”. After the user had read the individual times, he wiped the dials clean and was ready to measure the next intervals. To commemorate the creative watchmaker Nicolas Rieussec and his trailblazing invention, which numbers among the most popular horological complications nowadays, Montblanc in 2008 launched the Nicolas Rieussec chronographs, which have rotating discs rather than chronograph’s hands. These discs on which time was literally written build the bridge that connects the Montblanc watch manufacture with the Montblanc writing-implement manufacture.

The Montblanc Nicolas Rieussec Rising Hours Chronographs will be available starting from October 2013.
Références :No. 108790 - Stainless steel
No. 108789 - Pink gold 18 K
No. 108788 - Platinum 950
Movement :Montblanc Manufacture Calibre MB R220
Type of movement :Mechanical movement with automatic winding mechanism and twin barrels
Chronograph :Monopusher with column-wheel control and vertical disc clutch
No. of components :343
No. of jewels :42
Power reserve :72 hours
Balance :Screw balance Ø 9,70 mm
Moment of inertia:12 mgcm²
Frequency :28'800 bph (4 Hz)
Hairspring :Flat
Plate:Rhodium plated and circular grained
Bridges:Rhodium-plated, Geneva stripes
Gear train:Special toothing for more efficient power transmission
  • Hours and minutes on off-center dial
  • Digital hour display with integrated day/night indication
  • Day by disc
  • Date by disc
  • Power reserve indicator on case back
Chronograph:Chronograph tallies 60 elapsed seconds and 30 elapsed minutes on rotating discs with motionless hands
Case:18 K red gold
Crystal :Domed sapphire crystal with double antireflective coating
Case back :Screwed with transparent sapphire crystal
Water resistance :To 3 bar / 30 m
Diameter :Ø 43 mm
Height :15,30 mm
Crown :18 K red gold with inlaid mother-of-pearl Montblanc emblem
Push-piece :Monopusher at 8 o`clock
Dial :Silver-coloured with Grain d`Orges guilloche
Display Digital hour
Strap:Brown Alligator-skin
Clasp :Triple-folding made of 18 K red gold
Further models :In Platinum 950 (limited to 28 pieces) und Stainless steel
Ref. 108789 :26.900 € - Pink gold 18 K
Ref. 108788 :48.500 € - Platinum 950
Ref. 108790 :10.750 €  - Stainless steel
