Like most machines, a mechanical watch movement involves four basic operations: energy is generated, stored, transmitted and regulated. For centuries, these constants of mechanical watchmaking have been performed by three complementary blocks: a power storage system with cylindrical barrel, a transmission system with pinions and gears, and a regulation system with balance wheel, spiral hairspring and escapement.
With the TAG Heuer Monaco V4 Concept Watch, TAG Heuer substituted the traditional pinion and gear transmission with a belt-driven mechanical transmission. An award-winning BaselWorld concept watch in 2004, the Monaco V4 became a commercial reality at the end of 2009, when it was successfully launched in limited edition of 150 “Haute Horlogerie” pieces.
Now, to mark its 150th
anniversary, TAG Heuer proudly introduces the TAG Heuer Pendulum Concept, the first-ever mechanical movement without hairspring.

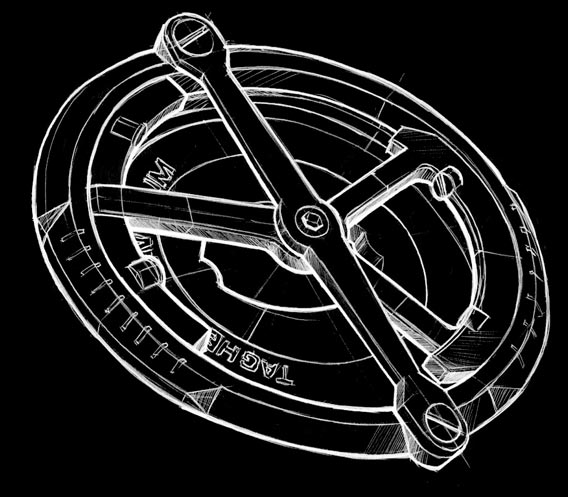

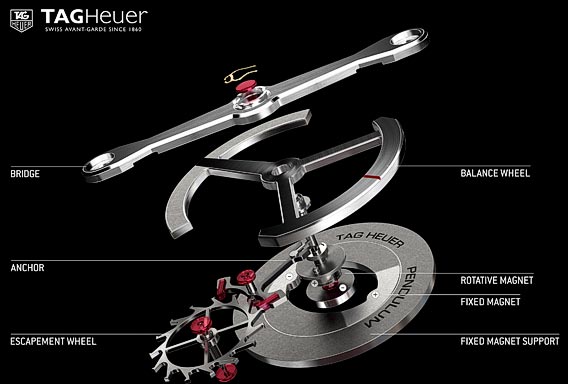

In the TAG Heuer Pendulum Concept, the traditional hairspring is replaced by an “invisible” or virtual spring derived from magnets. The complete device forms a harmonic oscillator. The magnetic field, generated by means of 4 high-performance magnets and controlled in 3D through complex geometric calculations, provides the linear restoring torque necessary for the alternative oscillations of the balance wheel. The oscillating period of the TAG Heuer Pendulum Concept is resistant to changes from perturbing forces, which is what makes it an exceptionally good timekeeping device. The movement built with this revolutionary oscillator is fully mechanical and does not contain any electronics or driven actuators. The magnets generate a constant field over decades.
TAG Heuer Pendulum Concept, the world’s first oscillator in a mechanical movement without hairspring, beats at 43,200/hour (6 Hertz) — making it a superlative representative of TAG Heuer’s unique mastery of high frequencies and ultimate precision. It requires no additional components and is based on physical magnetic properties. It gets its name from an earlier Huygens creation — the pendulum clock of 1657.
TAG Heuer Pendulum Concept: a potent new technical milestone in mechanical movements
The TAG Heuer Pendulum Concept not only overturns 3 centuries of conventional watchmaking tradition, it also represents in and of itself an enormous technological leap forward. In a classical spiral hairspring system, the effect of gravity due to mass is a dominant issue. With the TAG Heuer Pendulum Concept, the problem no longer even exists. There is no loss of amplitude and the movement’s frequency can be modulated on a very large spectrum of frequency without overburdening the power supply. The result is a significant increase in precision (division of time) and performance (frequency accuracy and stability).
The TAG Heuer Pendulum Concept is the first-ever magnetic oscillator without hairspring capable of providing a restoring torque comparable to that of a hairspring: the basic principle of the Swiss anchor escapement is therefore unchanged, but the absence of mass and therefore inertia allows for much larger frequencies. Theoretical precision is significantly higher as it is possible to oscillate at small angles (the elementary principle of oscillator accuracy) without altering the return torque and, especially important, without causing geometric deformations.
TAG Heuer Pendulum Concept project: 5 years of R&D effort
The TAG Heuer Pendulum Concept project involved in-house TAG Heuer R&D engineers and watchmakers working in an extensive research partnership with microsystems research experts at the Integrated Actuators Laboratory (LAI), part of the Microtechnics Institute of the Swiss Federal Institute of Technology in Lausanne (EPFL).
Starting from scratch has required advanced digital simulation coupled with physical analysis (mechanics, magnetism and thermal behaviour). It took TAG Heuer’s R&D team 3 years of intensive digital 3D simulation research to precisely orient the TAG Heuer Pendulum Concept’s virtual magnetic spring.
An old adversary still remains: the magnets are sensitive to temperature. The challenge facing TAG Heuer now is to discover the magnetic equivalent of invar-elinvar: to, in a sense, add Charles Edouard Guillaume’s accomplishments to those of Christiaan Huygens. Once addressed, the TAG Heuer Pendulum Concept will no longer be a concept but a new milestone in mechanical regulator technology. As with the V4, this may take years, but TAG Heuer is committed to taking on the challenge and pursuing the epic Pendulum adventure.
TAG Heuer does not claim that the Pendulum Concept will take the place of traditional, high-quality Swiss hairsprings in mainstream mechanical movements, but rather offer a “Haute Horlogerie” alternative, which could lead to high-end limited editions in the future, as was the case with the Monaco V4’s movement transmission innovations.
TAG Heuer Grand Carrera Pendulum Concept: a breakthrough movement housed inside a motor sports-inspired icon of premium luxury
The Grand CARRERA is the utmost prestigious incarnation of TAG Heuer’s unrivalled motor racing heritage and passion for avant-garde design and technology. Launched in 2007 and inspired by modern GT cars, the series was an instant success, widely acclaimed by watch and motor-sports enthusiasts for its effortless, at-a-glance readability and superlative aesthetics.

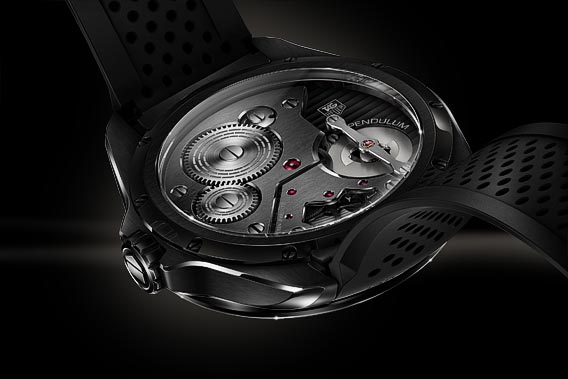

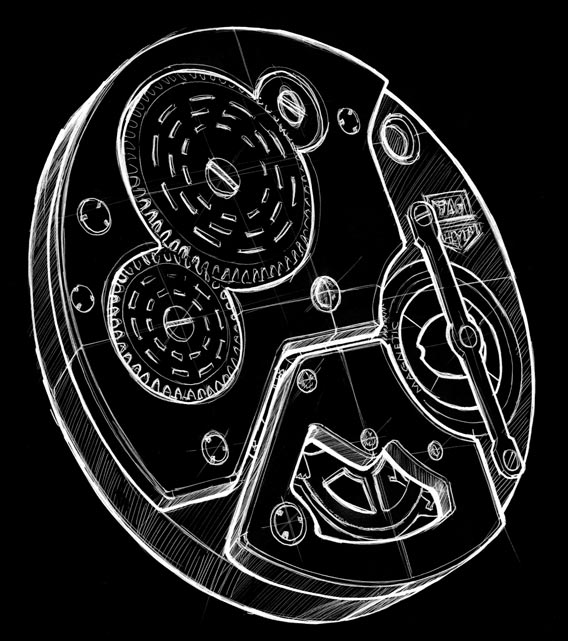

The design of the TAG Heuer Grand Carrera Pendulum Concept is faithful to the exclusive luxury codes of the GRAND CARRERA: polished and angled edges, curved and facetted horns on both sides of black titanium covered steel case. The special dial aperture at 9 o’clock allows to admire the beating heart of TAG Heuer Pendulum Concept’s avant-garde movement.
Inside and out, this is a superlative timepiece, a noble extension of the GRAND CARRERA collection and a worthy showcase of a breakthrough advancement in watchmaking technology.
The TAG Heuer Grand Carrera Pendulum Concept opens a promising new era in watchmaking, with potentially powerful new movements precise to ever-smaller fractions of time. The effect on future watches and chronographs design and function may be huge — and TAG Heuer once again leads the way even though it will take years before it will become a commercial realty. Patents have been filed and are pending. In 2010, TAG Heuer proudly celebrates 150 years of pioneering Swiss watchmaking. Founded in Saint-Imier in 1860 by Edouard Heuer, TAG Heuer has set many major milestones of high-end watchmaking, especially in the field of chronographs and ultimate precision. Today, one of the largest and most desired brands in the luxury watch industry, the Swiss legend draws upon its active engagement in the world of sports to create the most accurate timing instruments and watches in the world. TAG Heuer is the first watchmaker to master luxury chronographs with an unsurpassed precision of 1/10th, 1/100th and 1/1,000th of a second. From the Olympic Games in the 1920s to its role as official timekeeper for the legendary Indy 500 race, with accuracy at 1/10,000th of a second, TAG Heuer, in a constant quest for innovation, excellence, performance and prestige, continues to aim ever higher. This is reflected in its quarter-century partnership with F1 team Vodafone McLaren Mercedes, its 7-year partnership with 2008 Formula 1 World Champion, Vodafone McLaren Mercedes driver Lewis Hamilton, and his new teammate , 2009 Formula 1 World Champion Jenson Button. TAG Heuer, more than ever, epitomizes prestige and performance through active partnerships with Hollywood icon Leonardo DiCaprio and Bollywood star Shah Rukh Khan, LPGA star Suzann Pettersen and WTA tennis champion Maria Sharapova. TAG Heuer is a privileged member of the Fondation de la Haute Horlogerie (FHH), the most exclusive club in the Swiss watchmaking industry. The newest addition to the TAG Heuer legacy is the Calibre 1887, an in-house, Swiss manufactured, integrated column-wheel chronograph movement that pays tribute to the original Heuer oscillating pinion of 1887, one of the brand’s first patents and a major benchmark in modern watchmaking.
